Fitment:
-
For Surron Ultrabee
Features:
-
100% Brand New!
-
Under the high-intensity use mentioned above, the motor and controller need to output high current for a long time, generating huge heat. The core power devices inside the controller, such as MOS transistors, are extremely sensitive to temperature.
-
Installation position: The controller is usually installed inside the frame, with limited space around it, which is not conducive to air circulation and forms a “hot pot” for climbing and other low-speed high torque scenarios. If it lasts for more than 10 minutes, the controller will overheat, and in severe cases, it will burn out. Therefore, for off-road motorcycle enthusiasts, the heat dissipation of the controller is a necessary modification
Parameter:

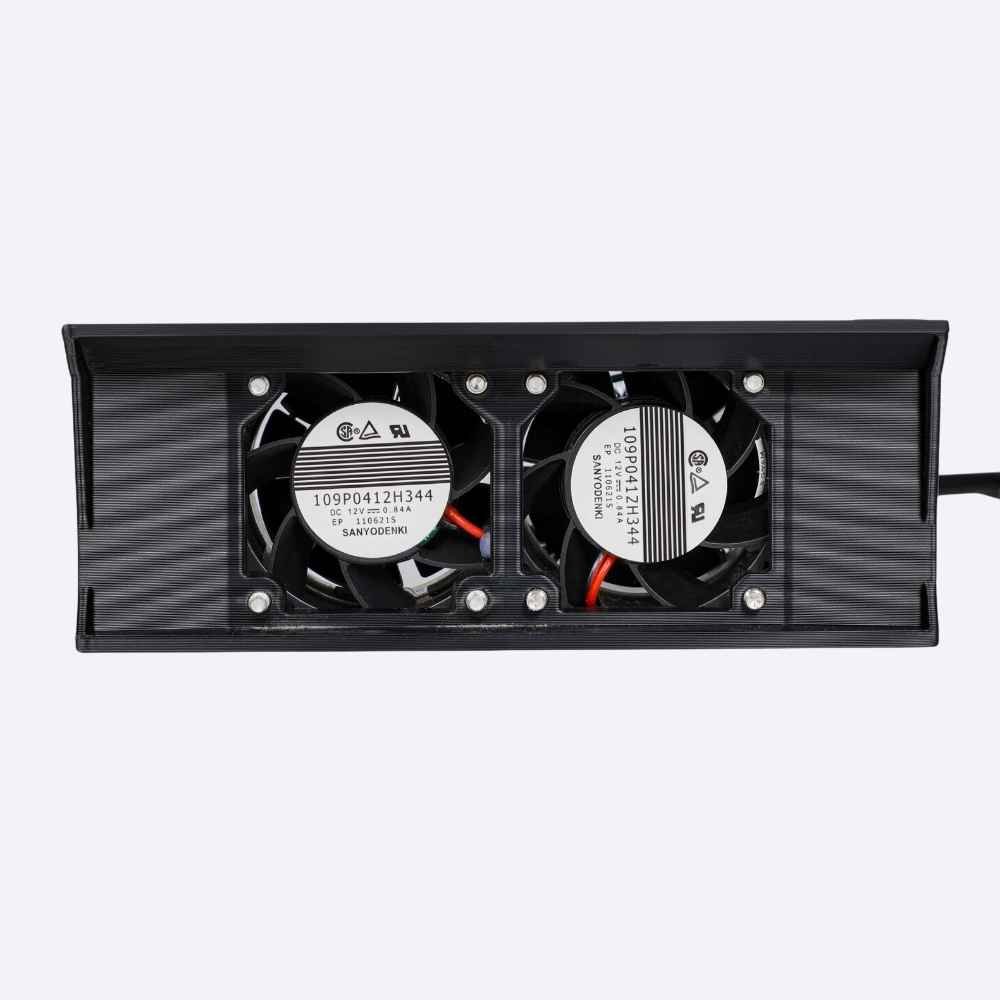

This fan adopts the Sanyo brand, size: 40X40X28MM, voltage: 12V (7V-13.8V can be used)
Current: 0.84A Power: 10.08W Speed: 20000RPM
Airflow: 27CFM Wind pressure: 415Pa Noise: 58db (A), fan with iron mesh protection, base made of ABS material

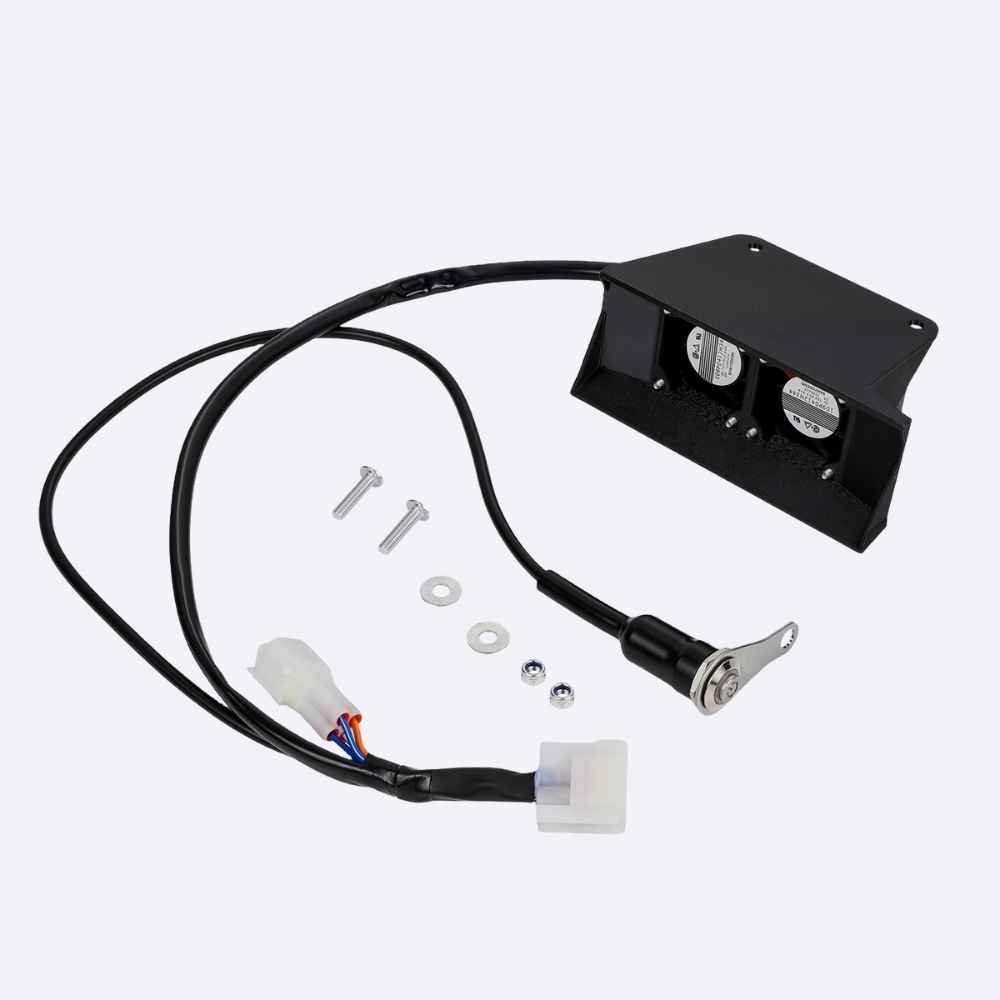

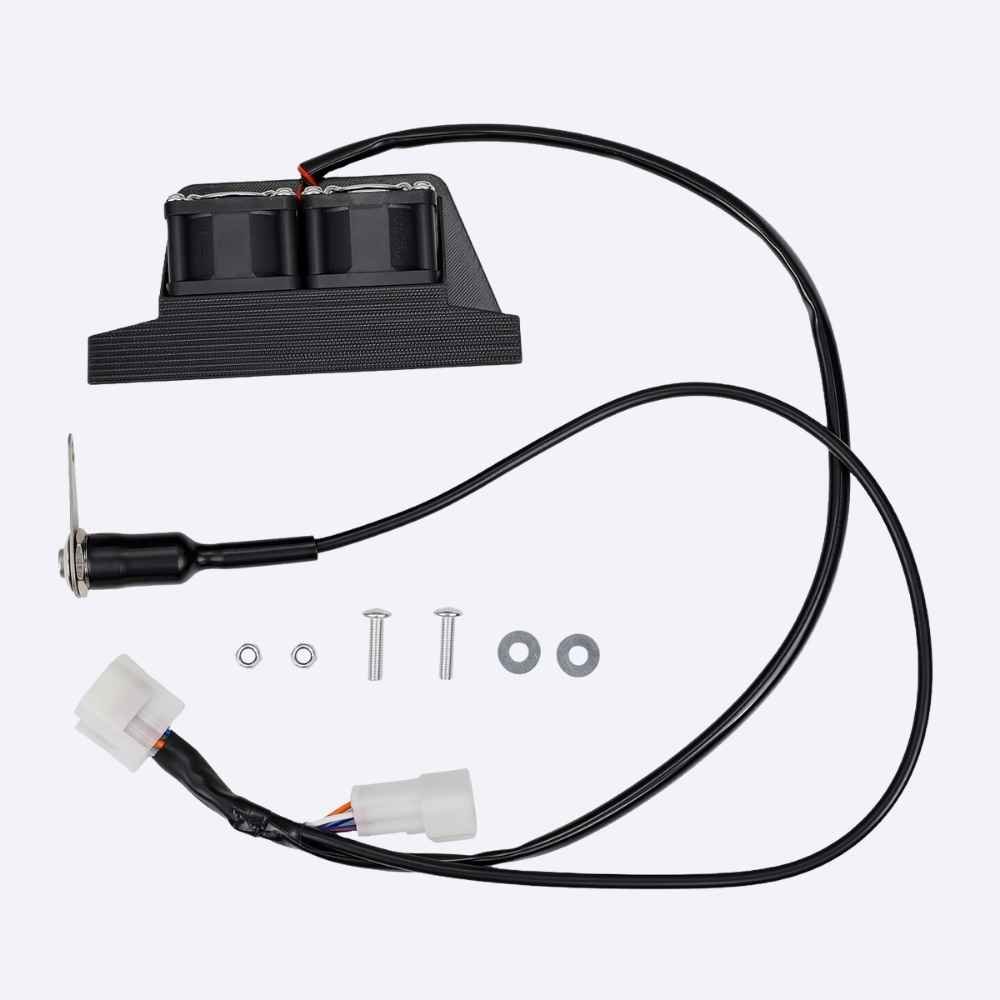

Equipped with a separate independent switch, it can control the start and stop of the fan, and the switch can be installed on the base of the brake.
Non destructive installation, unplug the original controller and headlight plug, and then plug the headlight plug and controller plug into the plug we provided.
Specification:
- Color : As pictures
- Material: ABS
Package Includes:
- Controller Cooling Fan As Pictures
- Instruction of Installation is NOT Included
